Fever alarm armband works on indoor light A wearable, printable, temperature sensor Announcement

March 25, 2015

© 2015 Sakurai Laboratory, Someya Laboratory

© 2015 Sakurai Laboratory, Someya Laboratory

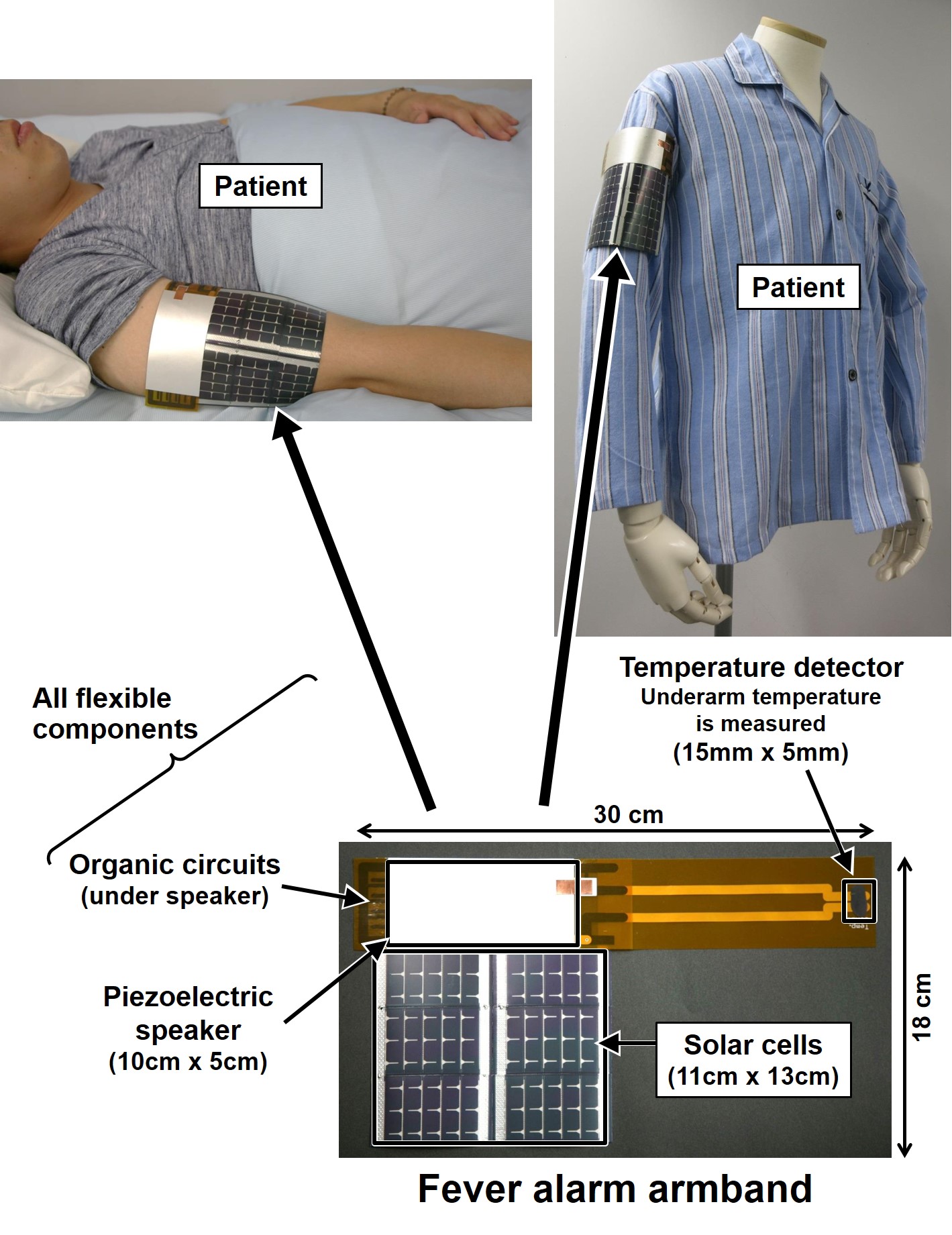

The new device developed by research groups lead by Professor Takayasu Sakurai at the University of Tokyo’s Institute of Industrial Science and Professor Takao Someya at the Graduate School of Engineering combines a flexible amorphous silicon solar panel, piezoelectric speaker, temperature sensor, and power supply circuit created with organic components in a single flexible, wearable package.

Constant monitoring of health indicators such as heart rate and body temperature is the focus of intense interest. Sensors for such applications need to be flexible and wireless for patient comfort, maintenance-free and not requiring external energy supply, and cheap enough to permit disposable use to ensure hygiene. Conventional sensors based on rigid components are unable to meet these requirements.

The fever alarm armband incorporates several first-ever achievements. It is the first organic circuit able to produce a sound output, and the first to incorporate an organic power supply circuit created entirely with organic transistors. The former enables the device to provide audible information when the flexible thermal sensor detects a pre-set value, while the latter increases the range of operational illumination and permits the device to function under indoor lighting conditions. The device can provide constant monitoring of body temperature without the need to change batteries. In addition to the current temperature sensing device, the technology could also be adapted to provide audible feedback on body temperature, or combined with other sensors to register moisture, pressure or heart rate.

This paper was presented at the 2015 IEEE International Solid State Circuits Conference, San Francisco, 22-26 February, 2015. The research was carried out with support from the Japan Science and Technology Agency (JST) as part of the JST Exploratory Research for Advanced Technology (ERATO) program.

Press release


Hiroshi Fuketa, Masamune Hamamatsu, Tomoyuki Yokota, Wakako Yukita, Teruki Someya, Tsuyoshi Sekitani, Makoto Takamiya, Takao Someya, and Takayasu Sakurai, "Energy Autonomous Fever Alarm Armband Integrating Fully Flexible Solar Cells, Piezoelectric Speaker, Temperature Detector, and 12V Organic Complementary FET Circuits," IEEE International Solid-State Circuits Conference (ISSCC) Digest of Technical Papers pp. 296-297: February 2015
