A whole new dimension for 3D printing Self-folding origami sheets create 3D shapes quickly, cheaply and efficiently Research news

July 24, 2023

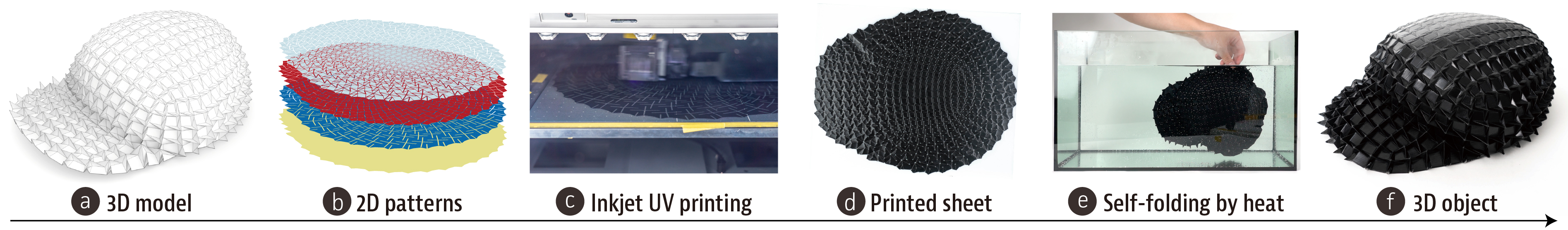

Six photos in a row showing a 3D hat as a digital design, then as a physical model.

4D printing process. Specially created software turns an input 3D model into a 2D pattern that can then be printed. The prints can then be submersed in hot water to self-fold into the final 3D object. ©2023 Narumi et al. CC-BY-ND

3D printing of complex objects typically takes a long time due to the printing process necessarily laying down a large number of 2D layers to build up the object. The process usually wastes a lot of material required to support the unfinished object. Some novel ways to make flat materials self-fold into 3D shapes exist, but have shortcomings. For the first time, researchers combined 2D printing, origami, and chemistry to create a method of rapid 3D object fabrication without creating any waste material. These shapes self-fold in seconds.

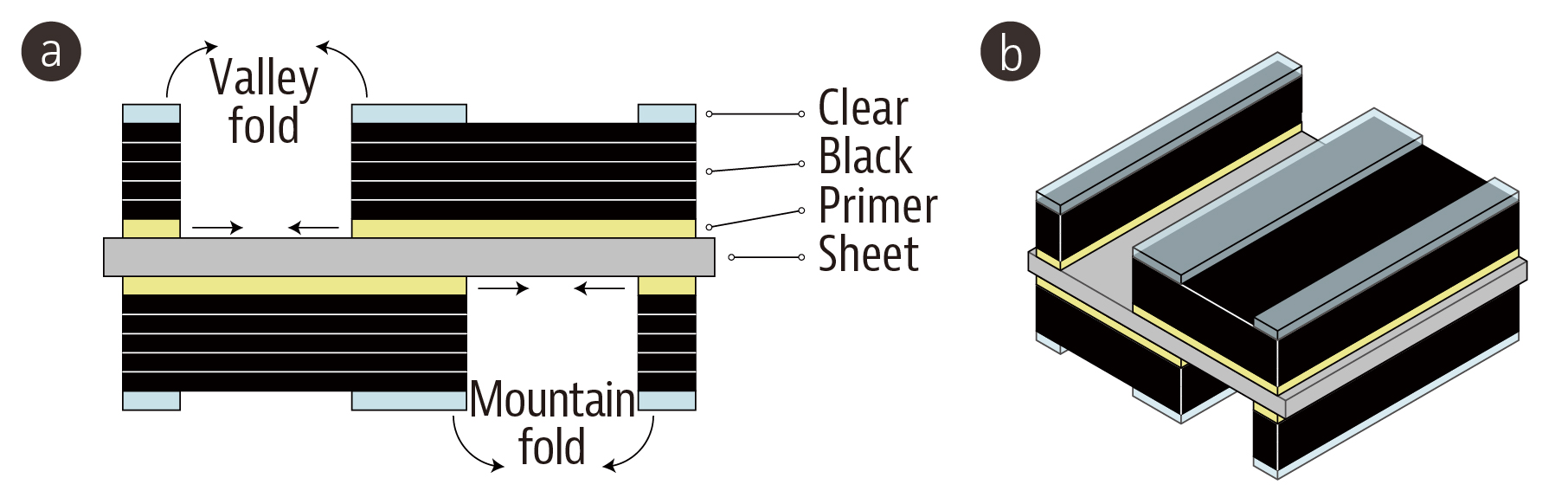

Two diagrams showing cross-sections of the inkjet layers above and below a flat sheet.

Valleys and mountains. In origami, there are two main types of creases used: valley folds and mountain folds. In each case, the paper is folded either inwards or outwards. To make these folds, gaps are left on one side of the heat-shrink sheet to allow for that part of the sheet to fold inwards, like a valley, or outwards, like a mountain, when heat is applied. ©2023 Narumi et al. CC-BY-ND

For some time, 3D printing has been used to prototype products and is now seeing more use in the fabrication of commercial items, including even parts for jet engines. But every method of 3D fabrication comes with limitations, such as the long time taken to complete prints or the wastage of vestigial materials in printing. 4D printing is a concept that aims to mitigate these issues using a minimal amount of materials, selected for having certain special properties, allowing them to self-fold into complex 3D shapes under the right conditions. It’s called 4D printing, as the process of self-folding necessarily makes use of time, which is often said to be the 4th dimension. Ironically, a new method of rapid 4D printing begins in the 2D realm.

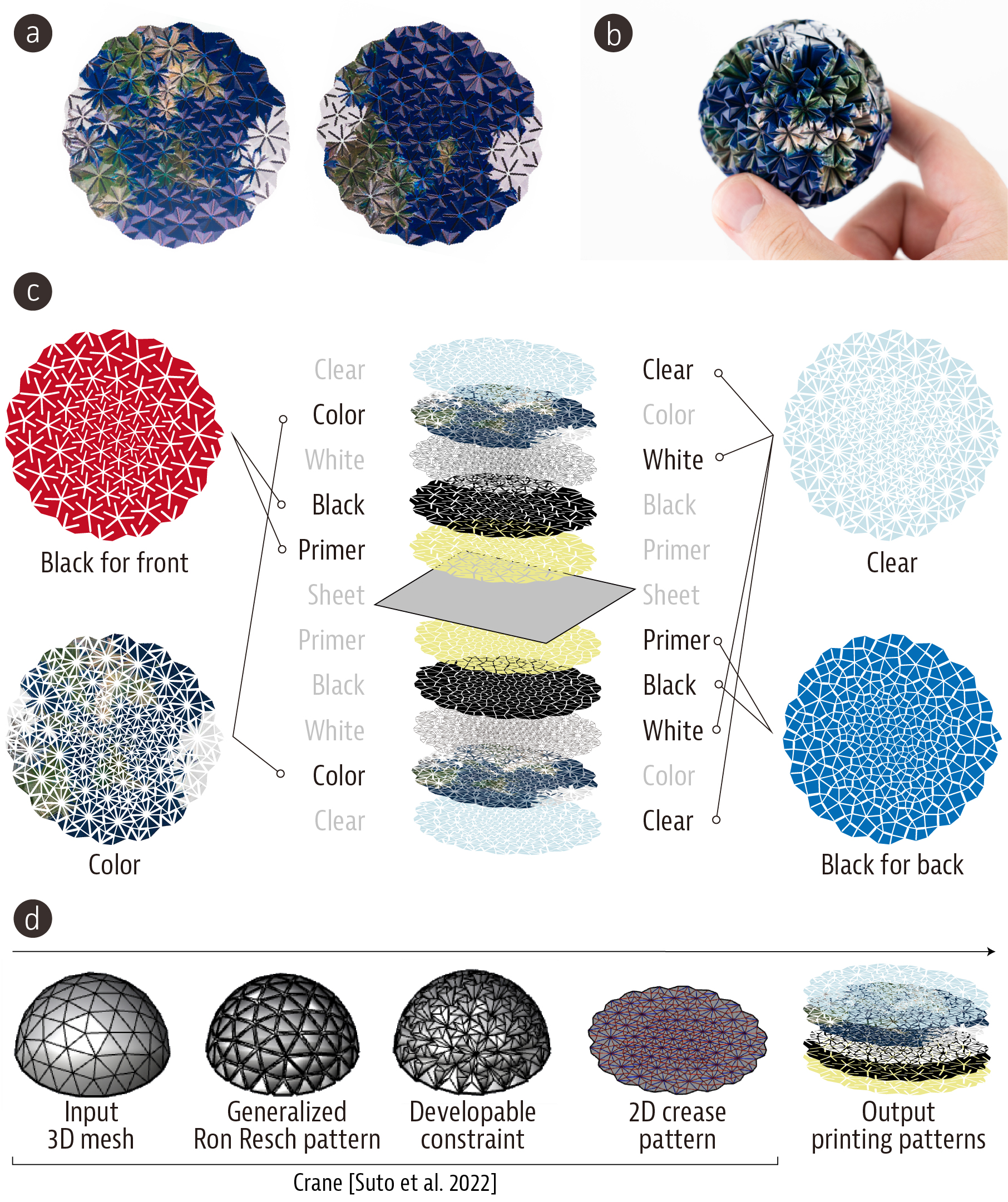

An exploded digram showing the layered structure of the prints, plus photographs of the final item

2D layers for 4D designs. Although the printed origami sheets are essentially flat, they combine many layers of different inks atop and below the central heat-shrink sheet material. A primer helps inks stick to the sheet, even when wet. The black ink is what resists the shrinking to allow folds to take place. A white layer provides a blank canvas for a color layer. And a final clear layer protects all of those below. ©2023 Narumi et al. CC-BY-ND

“My team and I discovered how to use accessible tools and materials to create self-folding 4D objects,” said Project Assistant Professor Koya Narumi from the Department of Electrical Engineering and Information Systems at the University of Tokyo. “Essentially, we’re creating flat sheets with origami patterns on them, and these patterns can be complex, taking even a skilled origami artist hours to form. But thanks to our special process, you can pour hot water over these flat sheets and watch as they spring into complex 3D shapes in a matter of seconds.”

The technique utilizes a special kind of inkjet printer made for printing with UV-reactive materials — although the machine itself can cost tens of thousands of dollars, they are often found within maker communities and shared workshops. This printer prints a 2D origami design onto both sides of a plastic sheet that shrinks with heat. The ink it uses doesn’t shrink and can stay flexible when dry. As the base sheet shrinks when heated and the ink resists the shrinking, by leaving gaps between sections of ink on one side or the other, the designer can control which way a certain section of the sheet folds. Hot water is used to apply heat across the flat sheet so that it spontaneously folds into an intricate origami construction.

“Our biggest challenge was refining the options for hardware and materials, which took over a year to narrow it down to the final choices,” said Narumi. “But all the trial and error was worth it; compared to previous research around this same basic idea, we’ve improved the output resolution by 1,200 times, meaning the designs we can create are not just novelties, but can be used for real applications. In the future, we may explore functional materials, such as conductive or magnetic inks, that could allow for machines and other functional devices.”

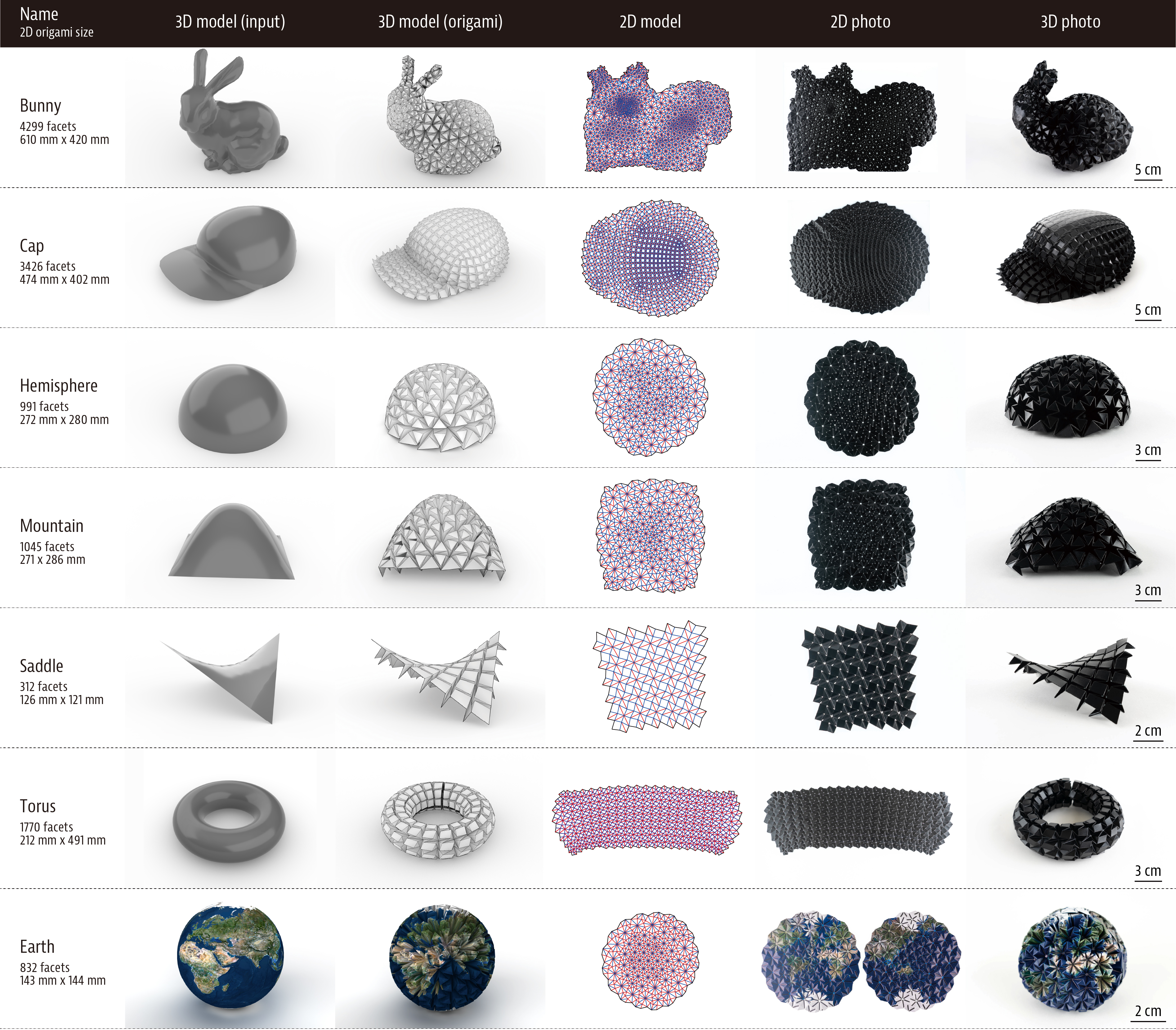

A grid displaying digital models and the final prints made from them.

Digital to physical. The software the team created is based on an important algorithm in the field of origami. It can decompose a 3D input object and output a 2D pattern. This process would take a human artist time, patience and a lot of trial and error. This algorithm is what first inspired the team to explore the idea of rapid 4D fabrication and is fundamental to the process. ©2023 Narumi et al. CC-BY-ND

Narumi and team hope this innovation can find use in various fields such as fashion, where material wastage is often high, especially in areas where bespoke designs are sought after. But given the pre-folded shapes are entirely flat, there’s also scope for this to be useful in any situation where there are tight logistical or storage concerns. Printed designs could even be posted, and the recipient could then heat them to turn them into the thing they ordered. And there could even be a use in the area of disaster recovery, where certain items, possibly including medical items, are needed but are often difficult to transport, and it becomes a lot easier when the items required are essentially flat.


Koya Narumi*, Kazuki Koyama*, Kai Suto, Yuta Noma, Hiroki Sato, Tomohiro Tachi, Masaaki Sugimoto, Takeo Igarashi, and Yoshihiro Kawahara. (* joint first authors), "Inkjet 4D Print: Self-folding Tessellated Origami Objects by Inkjet UV Printing," ACM Transactions on Graphics: July 24, 2023, doi:10.1145/3592409 .
Link (PublicationOpen a new window)
